Aestique IronVex 4000 Workstation | Modular Laser Engraver + CNC

Industrial Power. Creative Freedom.

2-in-1 System
FusionCut 4000 unites a precision CNC router and a high-power laser module in one open - modular platform. Cut, carve, or engrave any project - all from a single machine built for production - level performance.

2 in 1 Modular by Design

Swap & Create

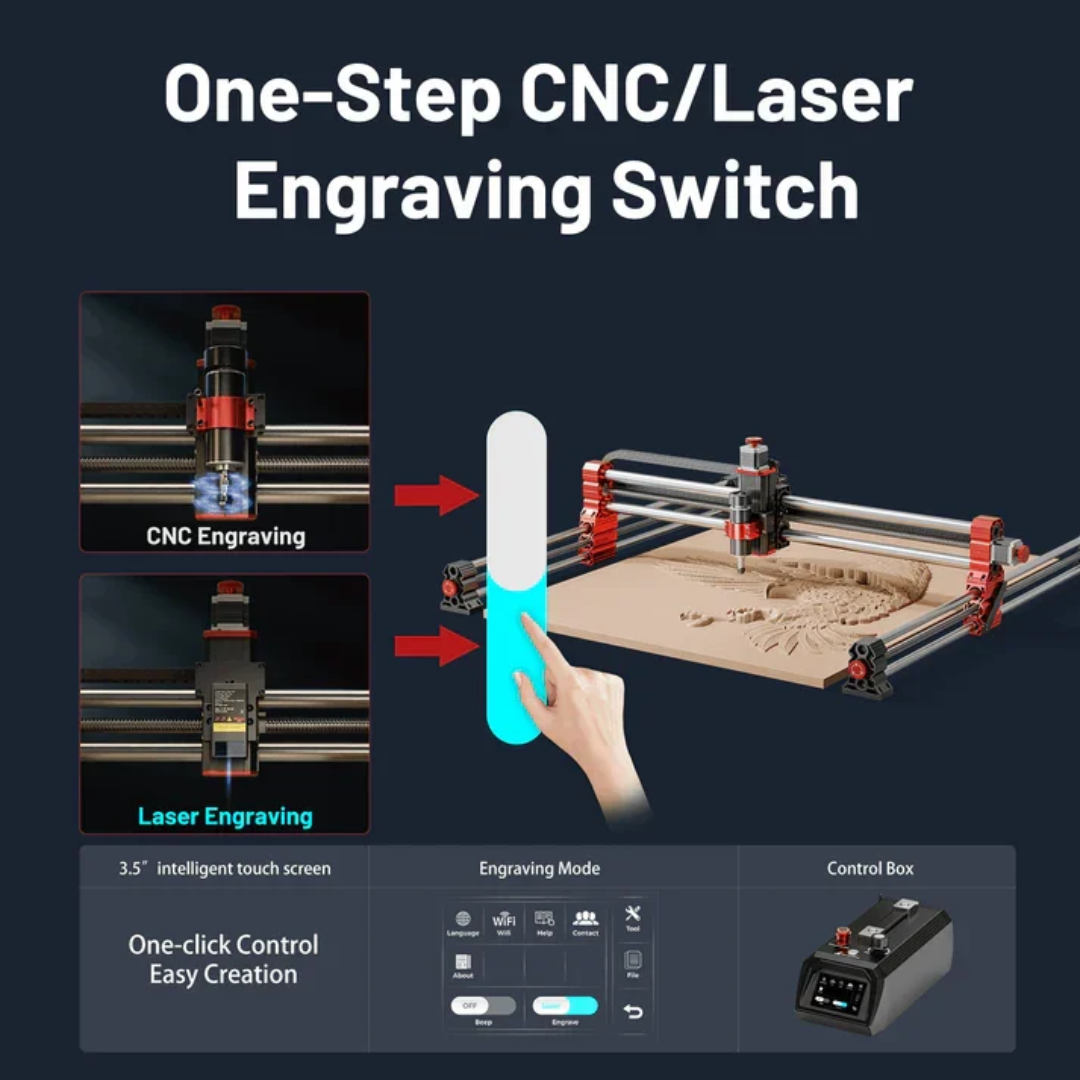

Switch between CNC and laser modules in seconds. No recalibration, no tools required. FusionCut 4000 adapts instantly to your workflow, making experimentation fast, easy, and endlessly fun.

Up to 100 W Laser Power

Pure Performance
From delicate surface etching to deep material cutting, the high-power laser module delivers precision across wood, acrylic, leather, and coated metals - maintaining perfect edges at every watt.

Open-Frame 3D CNC

Built for Makers
The rigid aluminum chassis and open-bed layout give full visibility and freedom to work on large or irregular materials. Ideal for prototyping, signage, furniture parts, and artistic fabrication.

Smart Precision Control

Adaptive System
Intelligent motion algorithms balance spindle torque and laser output automatically. Expect ultra-smooth curves, consistent depth, and reduced vibration across every job.

Industrial-Grade Durability

Heavy-Duty Motion
Equipped with dual ball-screw drives and reinforced linear rails, FusionCut 4000 ensures long-term accuracy even under continuous operation. Designed to run all day, every day.

Safe, Efficient Operation

Integrated Protection
Real-time temperature monitoring, emergency-stop safeguards, and automatic power-cut sensors protect both operator and workspace. Efficiency meets peace of mind.

Craft Without Limits

Professional Results
Whether cutting complex molds, engraving detailed panels, or building custom parts, FusionCut 4000 gives you industrial capability and creative control in one compact system.

Technical Specifications

Build & Structure

• Body Material: Industrial-grade aluminum alloy frame with stainless-steel guide rods.
• Manufactured In: China.
• Variants:

1. V1: 30 W Fiber + 20 W Diode + CNC
2. V2: 60 W Fiber + 25 W Diode + CNC
3. V3: 100 W Fiber + 40 W Diode + CNC

Dimensions & Weight

• Gross Weight:

1. V1 ≈ 43.9 kg
2. V2 ≈ 60 kg
3. V3 ≈ 80 kg

• Engraving Area:

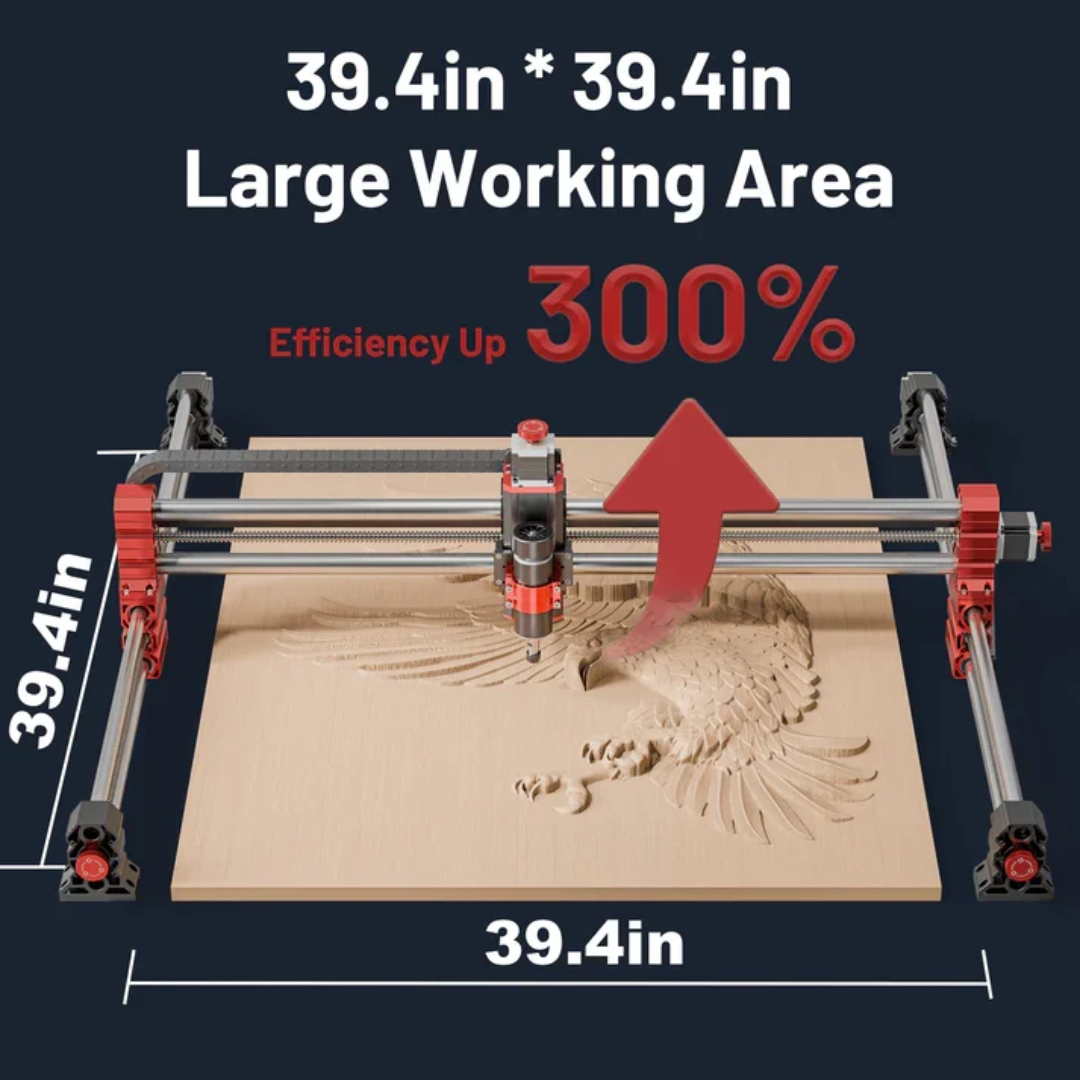

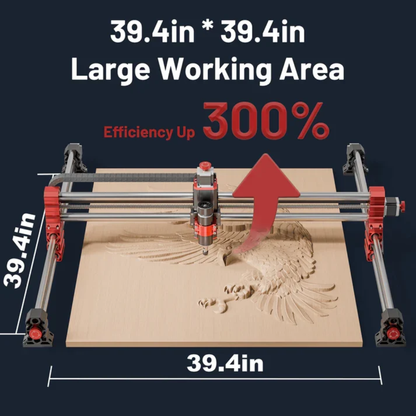

1. V1 – 1000 × 1000 × 100 mm (39.4″ × 39.4″ × 3.9″)
2. V2 – 1000 × 2000 × 100 mm (78.7″ × 39.4″ × 3.9″)
3. V3 – 2000 × 2000 × 100 mm (78.7″ × 78.7″ × 3.9″)

• Product Dimensions:

1. V1 – 1292 × 1290 × 404 mm (50.9″ × 50.8″ × 15.9″)
2. V2 – 1920 × 1292 × 425 mm (75.5″ × 50.9″ × 16.7″)
3. V3 – 2336 × 1292 × 425 mm (92″ × 50.9″ × 16.7″)

Performance

• Laser Power:

1. V1 – 30 W Fiber (MOPA) + 20 W Diode
2. V2 – 60 W Fiber (MOPA) + 25 W Diode
3. V3 – 100 W Fiber (MOPA) + 40 W Diode

• Spindle Power (CNC):

1. V1 – 500 – 800 W
2. V2 – 800 – 1500 W
3. V3 – 1500 – 3000 W

• Maximum Speed:

1. V1 – 1800 mm / min
2. V2 – 2000 mm / min
3. V3 – 2500 mm / min

• Engraving Accuracy: ± 0.05 mm (V1–V2) | ± 0.03 mm (V3)

Systems & Control

• Motion System:

1. V1 – Dual-motor linear-rail drive
2. V2 – Precision ball-screw system
3. V3 – Heavy-duty dual ball-screw with stability frame

• Touchscreen Functions: Motion control, speed control, CNC/laser switch, language options, and online help.

1. V2 adds work preview + power sync.
2. V3 adds real-time job tracking + diagnostics.

• Cooling System:

1. V1 – Air cooling
2. V2 – Hybrid air/water cooling
3. V3 – Dual water cooling with thermal regulation

Compatibility

• Supported Materials:

1. V1 – Plywood, MDF, Acrylic, Leather, Carbon Fiber, Aluminum Alloy
2. V2 – All V1 materials + Copper & Brass
3. V3 – All V2 materials + Stainless Steel & Titanium

• Connectivity: USB · Wi-Fi 2.4 GHz · TF Card (V1 & V2) | USB · Wi-Fi · LAN · TF Card (V3)
• Supported Software: FreeCAD, Carveco, ArtCAM, Easel (V1); + LightBurn (V2); + Fusion 360 (V3)
• Compatible Systems: Windows, macOS, and Linux

Safety & Operation

• Fully shielded laser enclosure with real-time temperature sensors.
• Automatic emergency-stop and power-cut protection.
• Certified protective eyewear included.
• Complies with CE and FCC safety standards for consumer and professional use.

What’s in the Package

Included in Every Version

• Brights Nest FusionCut 4000 Machine × 1
• Earmounted Ear Muffs × 1
• Tool Setter × 1
• AC Power Cord × 1
• Cross Screwdriver × 1
• Long Wrench Set × 1
• USB Drive (TF Card) × 1
• Tool Box with Drill Bits × 1
• Open-End Wrench Set × 1
• MDF Board (150 × 100 × 5 mm) × 1
• USB Extension Cable × 1
• Safety Goggles × 1
• Nylon Brush × 1
• Black Zip Ties × 1
• PP Board (White) × 1

V1 - 30 W Fiber Laser + 20 W Diode Laser + CNC

Balanced setup for creators and small studios. Ideal for light-to-medium materials such as wood, leather, acrylic, and coated metal sheets.

V2 - 60 W Fiber Laser + 25 W Diode Laser + CNC

Enhanced cutting depth and engraving precision with faster throughput. Perfect for workshops producing signage, tools, and multi-layer prototypes.

V3 - 100 W Fiber Laser + 40 W Diode Laser + CNC

Industrial-grade configuration for maximum speed and versatility. Handles thick metals, composite panels, and production-level manufacturing with ease.
